An update on taking toepad pictures

This is an update from my previous blog post on Toepad pictures.

0C7FAAF7-83FB-46AE-9B5E-D0F68041B2EA

I’ve taken more than four hundred toepad pictures using the new macro photography technique I introduced  in an earlier post and I’ve learned a few tricks that I want to share in this update.

First and foremost, I highly recommend this approach. For those of you looking to capture a lot of toepad data, particularly in the field, this kit is way faster and more portable than using a flatbed scanner and the images I’m getting are at least as sharp.

forefoot

A few tips:

  • Petri dishes work great as a clear platform to place the lizard feet on. I found that the 60 mm diameter dishes were much easier to balance atop the lens (~40 mm in diameter) than the larger dishes I’d originally shown.
  • I cut and taped a scale bar to one edge of the petri dish so I wouldn’t have to worry about juggling a lizard and a tape measure.
  • Make sure you have several petri dishes – they scratch fast – and keep some ethanol and a kimwipe close at hand.

IMG_6314

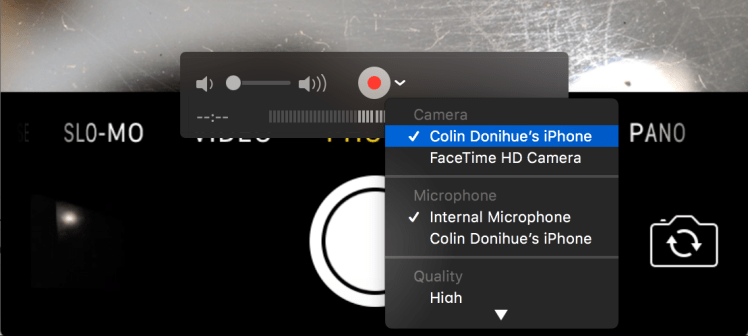

  • The app that lets you remotely trigger your iPhone is absolutely maddening. Do not download it. I’m not even going to relink the name. Instead, I suggest a much more stable alternative: connect your phone to your computer with the USB cable, open QuickTime Player, select File > New Movie Recording and click the down arrow next to the record button. This will give you the option to select your attached iPhone as a recording device. This live-view is far more stable and less frustrating. *Windows and android users I’m afraid I haven’t had an opportunity to sort out a solution for those platforms. If you know of something that works, please include in the comments!

Screen-Shot-2017-08-21-at-3.47.58-PM

Unfortunately, through the live view all you can see is whether the lizard is in position. You cannot remotely trigger the shutter this way. That means you’ll need a second pair of hands to help. I found it worked best when my partner was in charge of putting the ID tag in the frame after I’d placed the lizard foot and then pushing the volume button on the side of the phone to trigger the camera shutter.

  • Lighting is really important. I suggested a headlamp in the previous post providing an oblique light source through the diffuser around the lens. I tried using a microscope fiber optic light source but I was really unhappy with the “warmth” of the light. I found that the white-LEDs in my headlamp produced a much more realistic looking image (see above). Also, make sure you don’t have any light sources above/behind the subject. Backlighting confuses the camera’s auto-contrasting and results in dark and sometimes unfocused images.

red dewlap
